Extraction table POLIWOOD DF 2500

Availability: On order

Request a non-binding quote

Request a non-binding quote




    Contact

    Mitrovická 804, 739 21 Paskov

    Need advice? Send us an email and we will get back to you soon.

    SKU: PWDF2500 Categories: ,
    Description

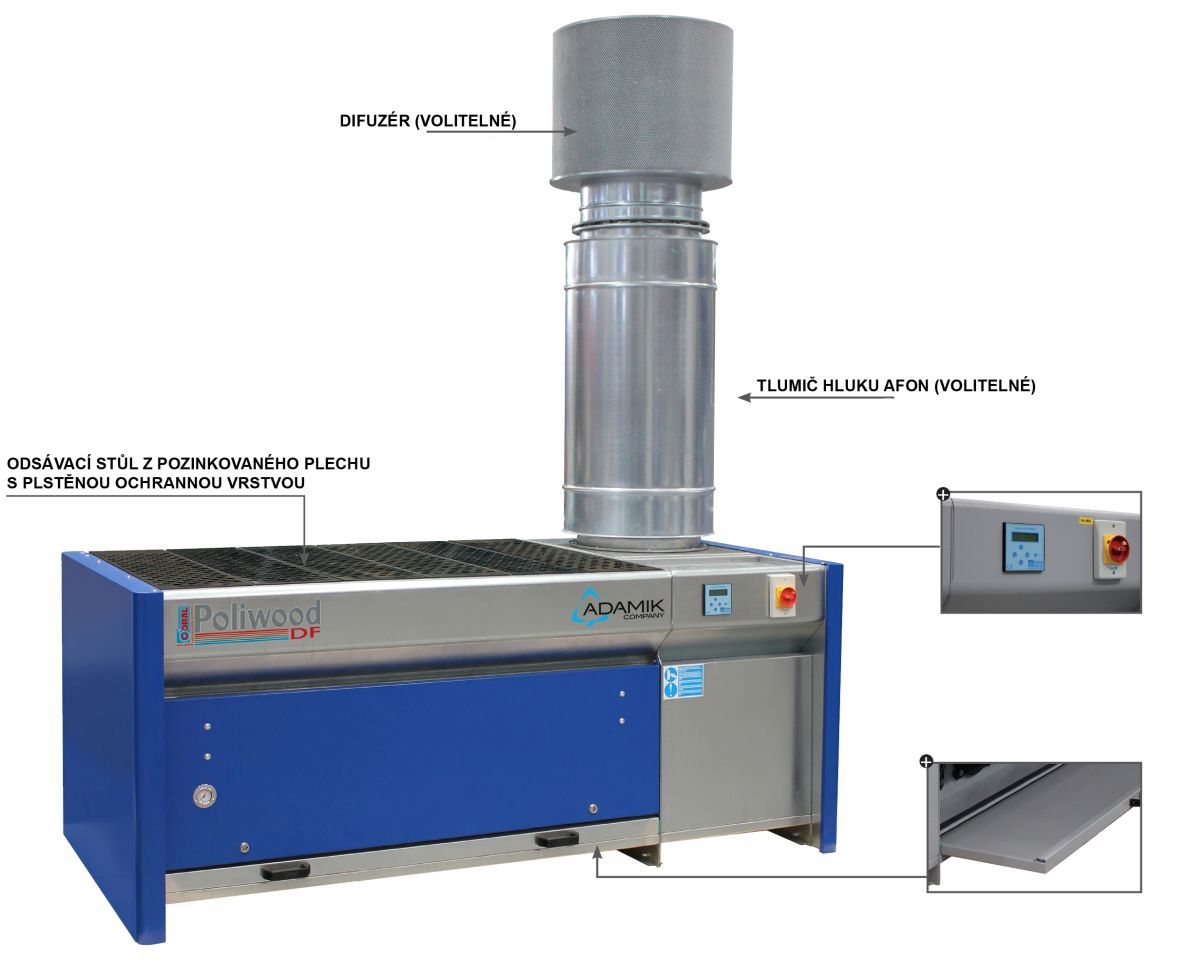

    Galvanized steel extraction table POLIWOOD DF 2500 with horizontal cartridge filters, ideal for direct extraction of fumes and dust when machining parts and grinding wood and marble.

    The table is equipped with an automatic pneumatic cleaning system.

    • High quality cartridge filters
    • Filtration efficiency 99.9 %
    • Filters particles from 0.2÷2 microns
    • Galvanized steel top plate with felt protection
    • Maximum efficiency of extraction and filtration of fumes and dust from wood sanding
    • Numerous options for adapting the extraction table to specific needs
    • Optional silencer and fire extinguishing system with fire extinguisher and electrical panel
    • “Plug & Play” solution, no special installation required
    • Optional polypropylene table surface protection
    • Extremely easy to maintain



    Optional equipment:

    • Front extraction wall.
    • Fixed sides without extraction.
    • Polypropylene table protective layer.
    • Work surface lighting.
    • Silencer.
    • Air diffuser.
    • Worktop extension, without extraction.





    Additional information
    Type

    POLIWOOD DF 2500

    Table work surface

    2,500 x 1,040 mm

    Max. surface load

    250 kg/m2

    Ventilator

    4 kW

    Voltage

    400 V / 50 Hz

    Suction capacity

    6,300 m3/h

    Filtration area

    56 m2

    Length

    3,193 mm

    Width

    1,118 mm

    Height

    909 mm

    Weight

    538 kg
