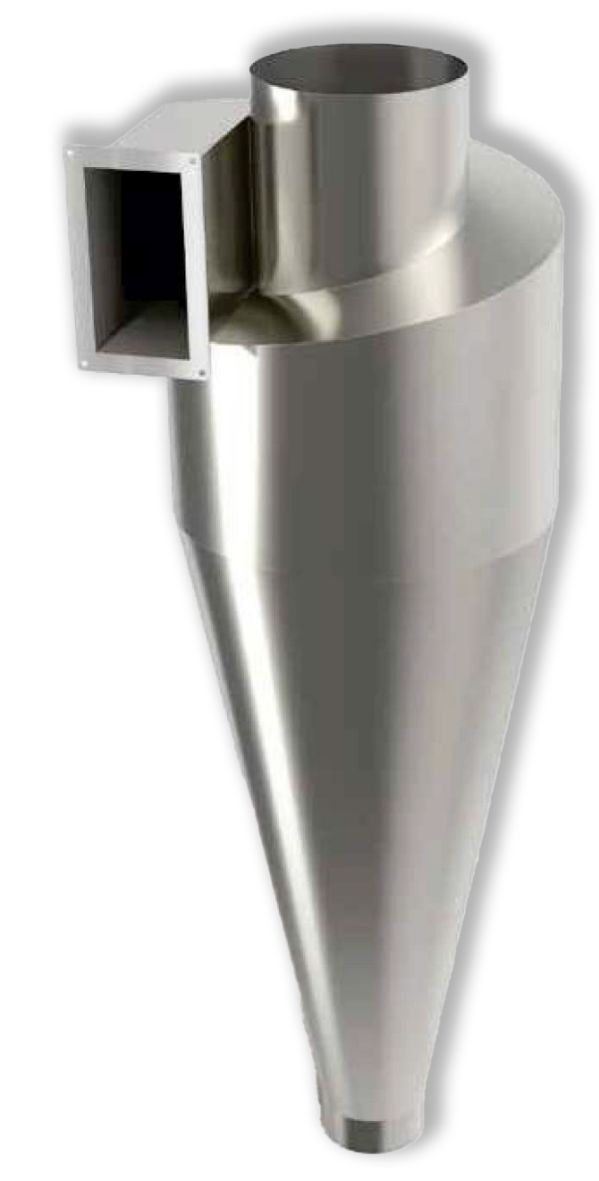

Cyclone ADAMIK ACP 1000L

The ACP cyclone separator is best suited for separating large dust particles or for pre-cleaning dust in filter units.

Air mixed with dust enters the upper part of the cylinder tangentially. The largest particles hit the inner surface of the cyclone due to centrifugal force, are pulled away and fall to the bottom, where they are transported to the conical part of the outlet. Finer particles rise with the air flow inside the inner cylinder and are released from its upper part.

The cyclone separator is made of galvanized sheet metal and can be supplied (optionally) with support legs.

An optional container for collecting separated material, a briquetting press or a rotary valve can be mounted under the outlet opening.
